High Pressure Valves

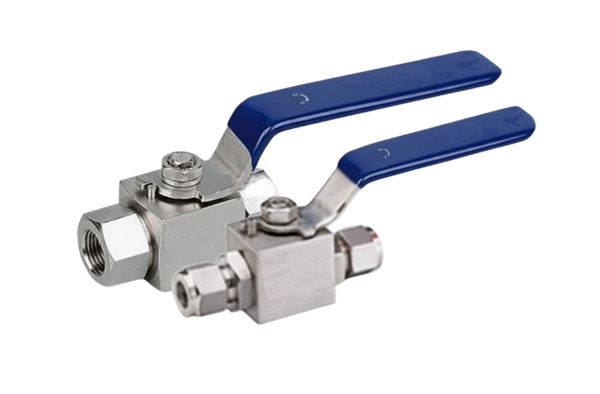

High Pressure Ball Valve

High Pressure Ball Valve
Size
 1/4″ to 2″
End Connection
 S/E, S/W, F/E, B/E & T/E
MOC
 SS 316, SS 316 L, SS 304, Carbon Steel, Duplex,
Packing
PTFE / PEEK / POM
Pressure Range
 Upto 14500 PSI (1000 bar)
Temperature Range
 -4° to 176°F at full pressure

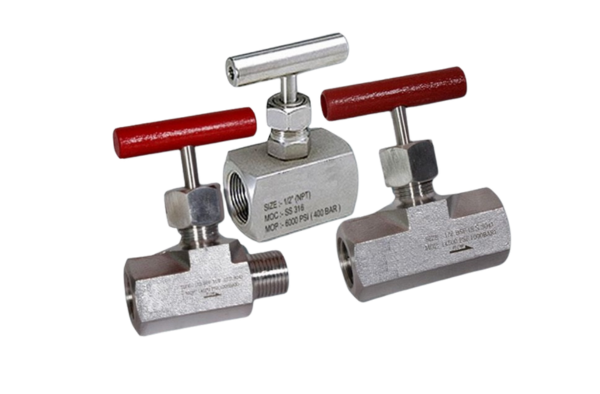

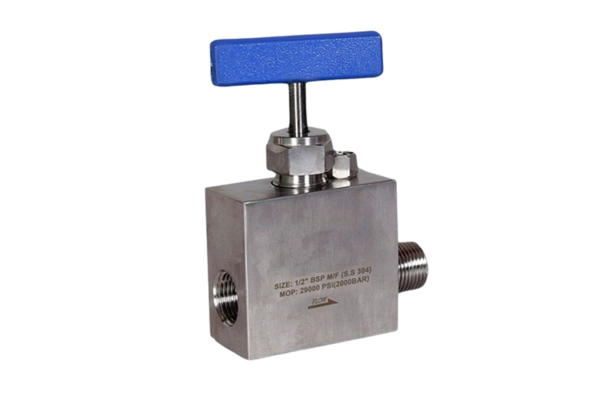

High Pressure Needle Valve

High Pressure Needle Valve
Size
1/4″ to 2″
End Connection
S/E, S/W, F/F, M/F & B/E & As per your requirement
MOC
SS 316, SS316L, SS 304, Carbon & As per your requirement
Packing
PTFE / Filler PTFE
Pressure Range
Upto 14500 PSI (1000 bar)
Temperature Range
-4° to 176°F at full pressure

High Pressure Needle Valve

High Pressure Needle Valve
Size
1/8″ to 1/2″
End Connection
F/F, M/F & As per your requirement
MOC
SS 316, SS 304, Carbon & As per your requirement
Packing
PTFE / Filler PTFE
Pressure Range
Upto 50000 PSI (3500 bar)
Temperature Range
-4° to 176°F at full pressure

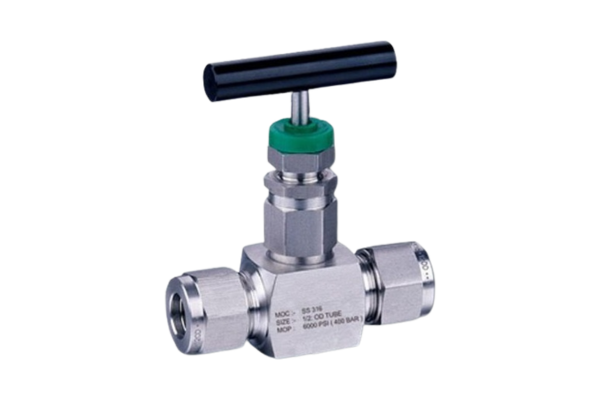

High Pressure Tube End Needle Valve

High Pressure Tube End Needle Valve
Size
1/4″ to 1″ & 6mm to 25mm
End Connection
S/E, S/W, F/E & B/E
MOC
SS 316, SS 316L, SS 304, Carbon Steel & As per your requirement
Packing
PTFE / Filler PTFE
Pressure Range
Upto 6000 PSI (400 bar)
Temperature Range
-4° to 176°F at full pressure

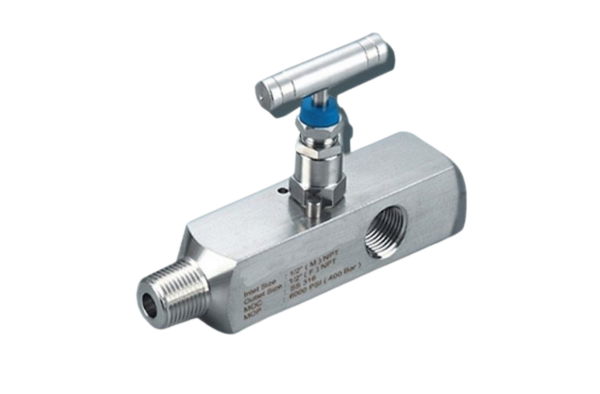

Multi Port Gauge Valves

Multi Port Gauge Valves
Size
1/4″ to 1″
End Connection
S/E
MOC
SS 316, SS 316 L, SS 304, & As per your requirement
Packing
PTFE / Filler PTFE
Pressure Range
Upto 10000 PSI (7t00 bar)
Temperature Range
-4° to 176°F at full pressure

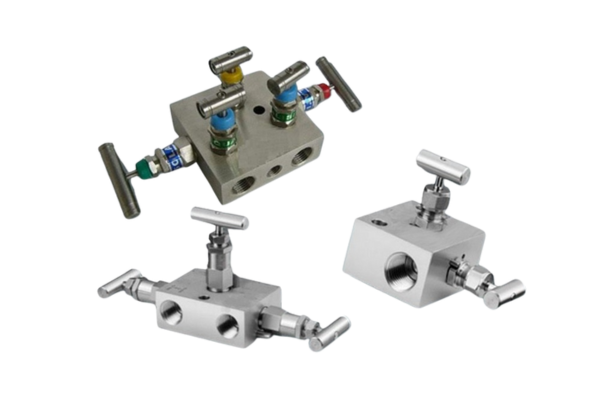

2 Way, 3 Way and 5 Way Valve Manifold Valve

2 Way, 3 Way And 5 Way Valve Manifold Valve
Inlet Connection
1/2″ & 1/4″
Outlet Connection
1/2″ & 1/4″
Vent Port
1/2″ & 1/4″
MOC
SS 316L, SS 304, Carbon Steel & As per your requirement
Packing
ViltonTM O-ring, TeflonTM and GrafoilTM
Pressure Range
Upto 10000 PSI (700 bar) at 100°F 38°C

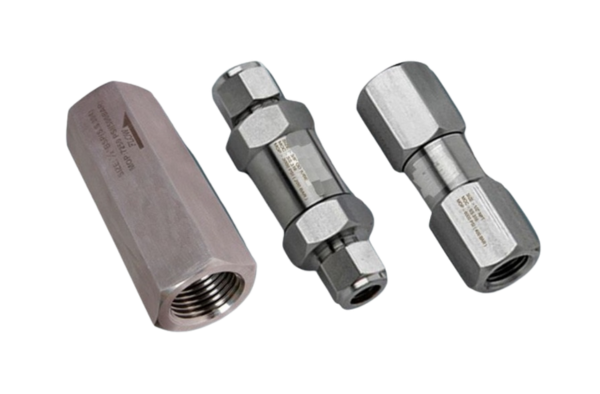

Inline Check Valve

Inline Check Valve
End Connection
NPT, BSP, Tube End & As per your requirement
Tube End Size
1/4″ to 1″ or 6mm to 25mm
Screwed
1/4″ to 2″
MOC
SS 316, SS 316, SS 304, Carbon Steel & As per your requirement
Packing
ViltonTM O-ring, TeflonTM
Pressure Range
Upto 10000 PSI (800 bar) at 100°F 38°C

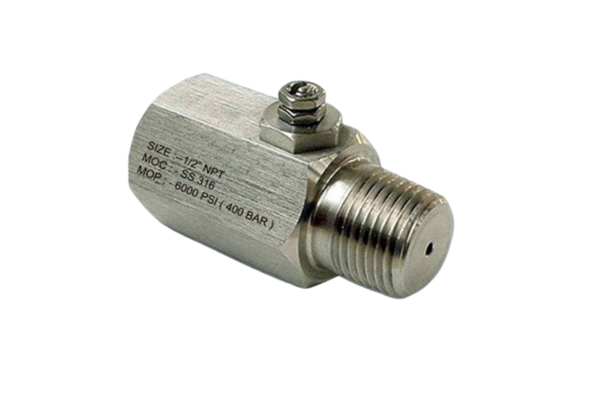

Pressure Snubbers

Pressure Snubbers
End Connection
NPT, BSP, & BSPT & As per your requirement
Screwed
1/4″ to 1″
MOC
SS 316, SS 316L, SS 304, Carbon Steel & As per your requirement
Packing
ViltonTM O-ring, TeflonTM
Pressure Range
Upto 14500 PSI (1000 bar) at 100°F 38°C

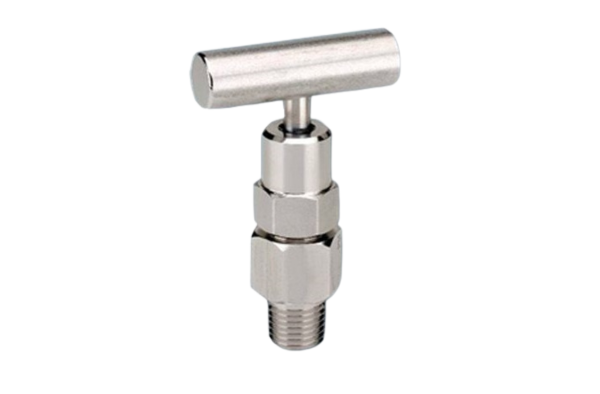

Bleed Valve

Bleed Valve
End Connection
NPT, BSP, BSPT & As per your requirement
Screwed
1/4″ to 1″
MOC
SS 316, SS 316 L, SS 304, Carbon Steel & As per your requirement
Packing
ViltonTM O-ring & TeflonTM
Pressure Range
Upto 10000 PSI (700 bar)

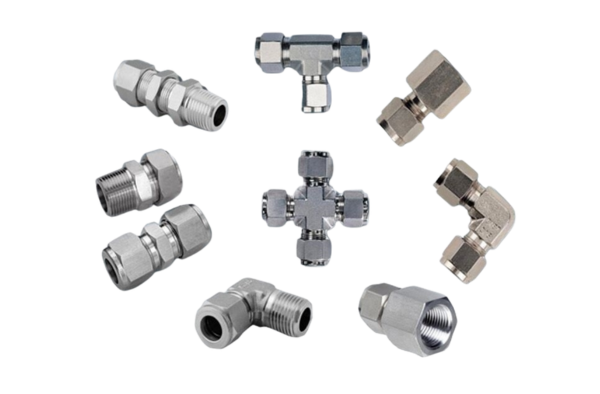

Forged Fittings

Forged Fittings
End Connection
NPT, BSP, Tube End & As per your requirement
Size
1/4″ to 1″
MOC
SS 316, SS 316L, SS 304, Carbon Steel & As per your requirement
Pressure Range
Upto 14500 PSI (1000 bar)

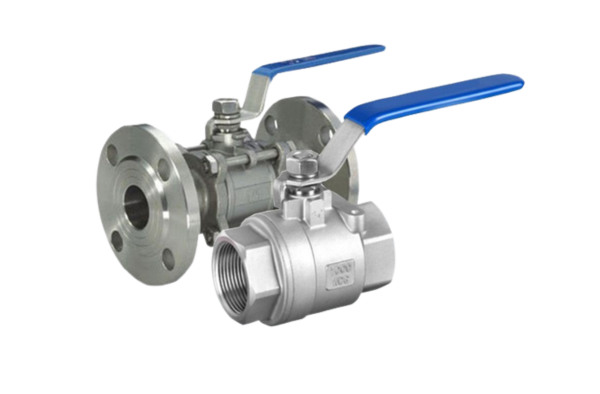

I C Ball Valve

I C Ball Valve
End Connection
Tube end
Size
1/8″ to 1″
MOC
SS, CS & As per ypur requirement
Pressure Range
Upto 6000 PSI at 1200°F

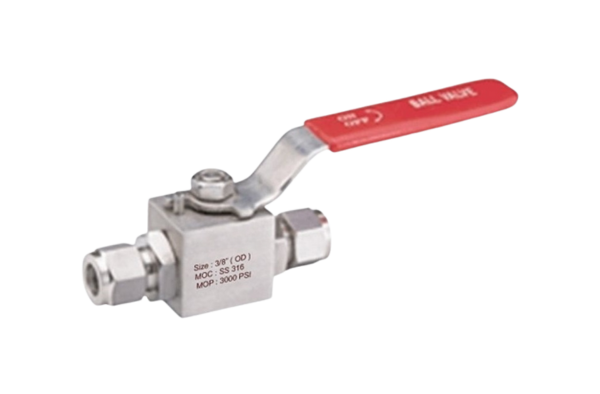

Instrumentation Ball Valve

instrumentation ball valve
End Connection
Screwed, Socket Weld, Butt Weld, Flanged
Size
1/2″ to 4″
MOC
CF8, CF8M, WCB
Packing
PTFE & Filler PTFE
Pressure Range
Upto 1500 Class at 14°F to 210°F

Note: Above product details briefly outline our current standard pump range. Due to constant development in pumps and improve the performance of our all products information is subject to change without any notice. Product colour is not a identity of product.
